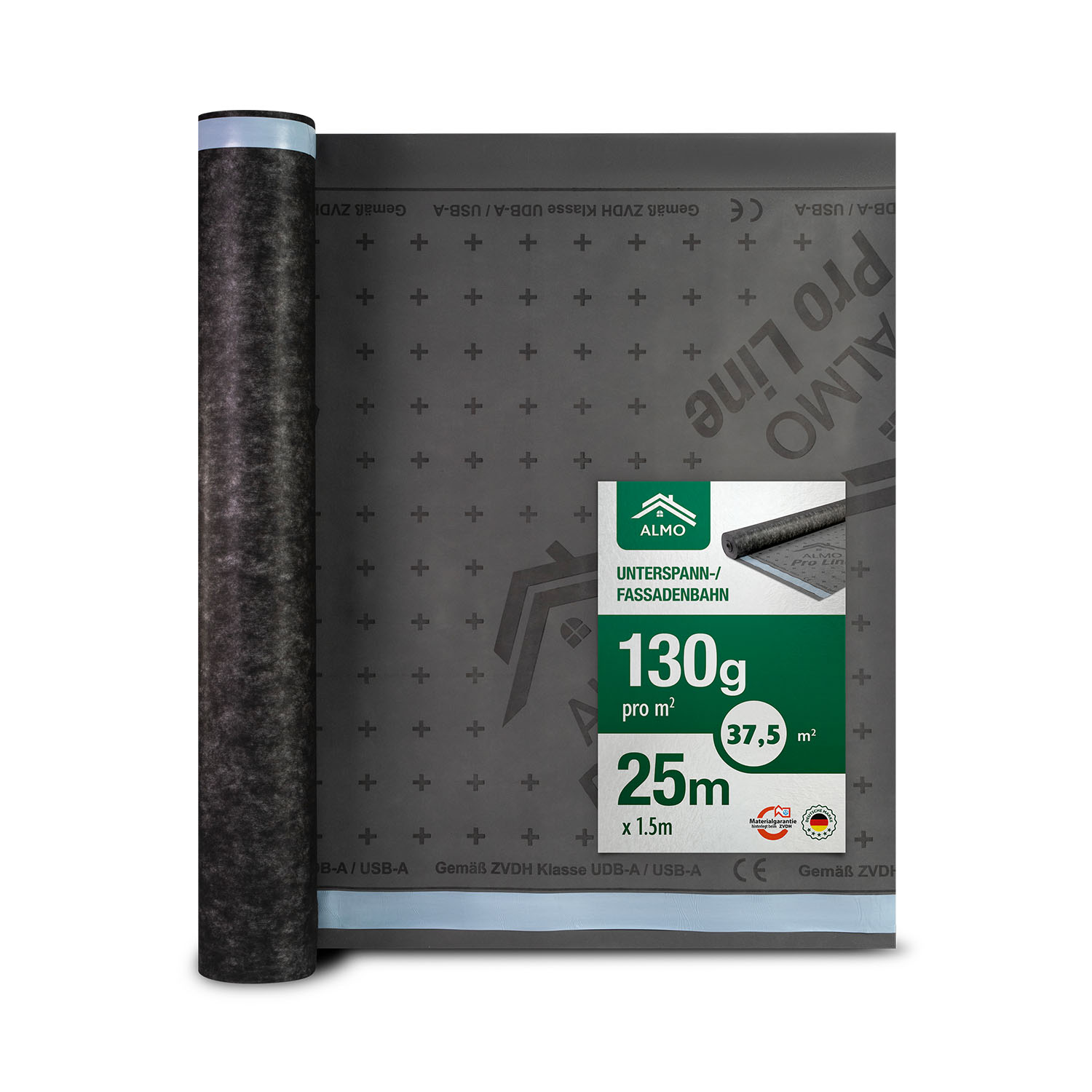

ProLine 130 Roof and facade membrane

Quantity	Unit price	Base price
To 4	€122.20	€1.63 / 1 m²
To 8	€116.50	€1.55 / 1 m²
From 9	€108.25	€1.44 / 1 m²

Prices incl. VAT

77 Reviews

For reliable protection of roof structures and closed facades

Driving rain resistant
Breathable
With self-adhesive strips

Execution

1.5m x 25m

1.5m x 50m

Total:

roll

Product number: SW10000.1

Driving rain proof
Open to diffusion
Integrated self-adhesive seam

Product advantages

UV-resistant

Long-term protection

Open to diffusion

Prevents mold growth

Driving rain proof

Water-repellent, protection from rain

✓

EASY TO INSTALL

With a surface weight of 130g/m² and double self-adhesive strips (SK), ProLine 130 is safe and quick to install.

✓

EXTREMELY OPEN TO DIFFUSION

The water vapor-permeable special membrane allows the insulation to dry out optimally and prevents mold growth.

✓

VARIABLY APPLICABLE

The ALMO underlay can also be used as a façade membrane for closed facades.

✓

APPLICABLE FROM ROOF PITCH > 15°

The ProLine 130 is versatile and can be used for roof pitches from 15°.

✓

VERY TEAR RESISTANT

The three-layer construction with 2 nonwovens on the outside and a special membrane makes the ProLine 130 very tear-resistant.

✓

A-CLASSIFICATION

The ALMO ProLine 130 complies with the ZVDH classification UDB-A / USB-A.

Technical Data

Application	Underlayment
Features	Self-adhesive seam, open to diffusion
Carrier system	Polypropylen Fleece
Functional layer	Microporous functional film
Grammage	130 g/m²
Roll dimensions	50m x 1,5m
Diffusion-equivalent air layer thickness (sd value)	0,02 m
Roof pitch	15°
Maximum tensile force longitudinal / transverse in N / 50mm	305/180
m² per roll	75
UV resistance	1 month
Temperature resistance	-40 °C to +80 °C
Fire classification	Class E (according to EN 13501-1)
Resistance to water penetration	W1 (according to DIN 1928)

Installation instructions for ProLine roof & facade membranes

Step 1: Align and prepare the roof membrane

The ALMO ProLine sarking and underlay membrane should be laid starting at the lower part of the roof pitch and parallel to the eaves. The printed side is the upper side and faces the installer during installation. The membrane is rolled out directly onto the rafters or onto the fully sheathed roof. The underlay should protrude slightly after positioning.

Step 2: Fastening in the eaves area

In the eaves area, the roofing membrane must be fastened under the counter battens on the eaves sheet or above the eaves batten on the gutter lashing. At the same time, water pockets and counterfalls should be avoided. Fasten the underlays to the rafters with nails or staples.

Step 3: Nail sealing tape and counter battens

To keep the rafters watertight, we recommend using a strip of our Nail sealing tape 60 under the counter battens. After spreading the membrane, counter battens and battens should be attached. The counter battens create a gap between the membrane and the battens. Make sure that all points where nails or staples pass through the membrane are sealed with nail sealing tape and are located under the counter battens.

Step 4: Overlap and bond the roofing membranes

Another strip of membrane should be applied with a 10-15 cm overlap. To make the installation of the roofing membrane efficient, avoid draughts and keep the overlaps watertight, use the adhesive strips integrated with the membrane, which are glued together.

Step 5: Ridge sealing

For non-ventilated roof constructions, the membrane goes over the ridge to seal it against snow and rain. For ventilated roof constructions, the roof membrane should be approx. 5 cm from the highest ridge point. This ventilation opening should also be secured with a strip of roofing membrane fixed over a counter batten so that the membrane overlaps the roof surface by approx. 20 cm.

Step 6: Sealing for eaves

In the case of roof projections such as chimneys, the sheets should be cut, pulled out and fixed with the ALMO Versa Uni Tape be sealed. Separate strips of membrane are bonded to the surface and at the corners. An inclined foil gutter can be installed above penetrating building components. To form a temporary covering, connections to rising building components must be additionally bonded and secured to prevent them from running behind.

Step 7: Seal overlaps windproof

The resulting overlaps must be bonded laterally and transversely if wind-tightness is required. For a replacement overlap, the membrane strip of a foil gutter is extended to below the next ridge-side height overlap and taped all the way around. The open joints at the corners are taped to make them rainproof. Roof windows are integrated into the opening and fixed in place. If counter battens or the resulting frame are further away from the window, separate strips of membrane can be attached.

Step 1: Aligning the facade membrane

The smooth side of the Volcano® UV facade membrane should face outwards and the ProLine with the lettering should face the installer. It should be attached directly to the insulation using a stapler above the adhesive seam.

Step 2: Overlapping the facade membranes

The second facade sheet should be installed over the first facade sheet, with an overlap of around 10 cm. The self-adhesive strips of the two façade membranes should then be detached and glued closely together to ensure a tight facade seal.

Step 3: Sealing with Volcano® UV adhesive tape

The facade membranes should be overlapped using the UV-stabilized and diffusion-open Volcano® UV Facade adhesive tape for an optimal, wind-tight seal.

Step 4: Installing the counter battens

After the facade sheets have been bonded, the counter battens should be mounted directly onto the supporting structure in the direction of the supporting structure.

Step 5: Fastening the timber cladding

The timber cladding is then mounted directly onto the counter battens. It is important to fasten the timber cladding evenly and securely in order to create a stable base for the facade cladding.

Carrier system:	Polypropylen-Vlies
Application:	Underlayment / sarking membrane
Characteristics:	Self-adhesive seam, Diffusion open
Functional layer:	Microporous functional film
Weight per unit area:	130 g/m²
Diffusion-equivalent air layer thickness (sd value):	0,02m
Maximum tensile force longitudinal / transverse in N / 50mm:	305/180
Roll length:	50m
Width:	1,5m
m² per roll:	75
UV-resistance:	1 month
Temperature resistance:	-40 °C to +80 °C
Fire behavior:	Class E (according to EN 13501-1)
Widerstand gegen Wasserdurchgang:	W1 (nach DIN 1928)

Downloads

Data sheet ProLine 130

Datenblatt ProLine 130

ALMO Verlegeanleitung Fassadenbahn
