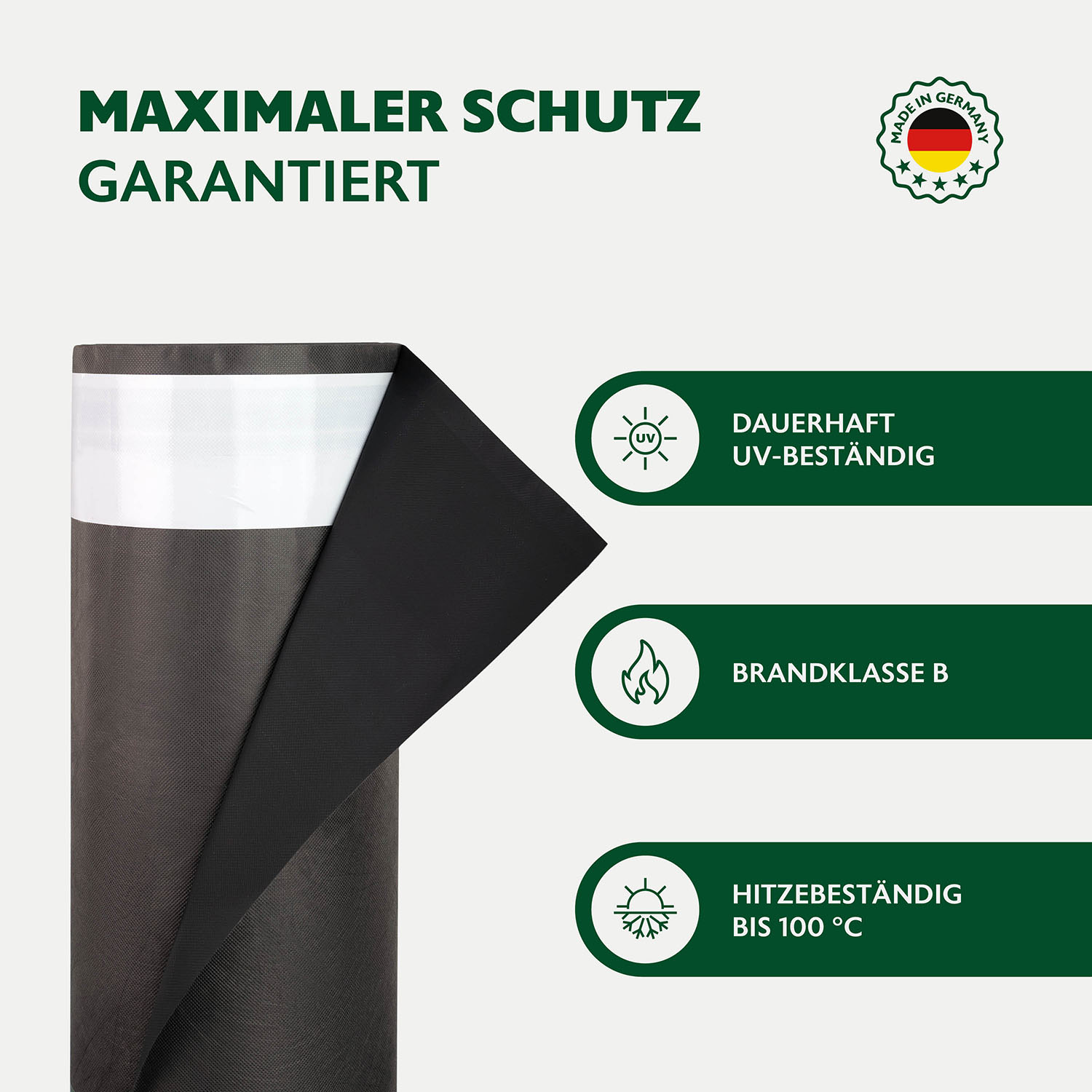

Volcano® UV facade membrane

Quantity	Unit price	Base price
To 4	€326.50	€4.35 / 1 m²
To 8	€299.80	€4.00 / 1 m²
From 9	€285.00	€3.80 / 1 m²

Prices incl. VAT

95 Reviews

Bestseller

For lasting protection of wall structures in open and closed facades

Permanently UV-resistant
Highly breathable
Wind and rain resistant

Execution

1.5m x 10m

1.5m x 25m

1.5m x 50m

Total:

Roll

Product number: SW10008.2

MPA Braunschweig - Fire protection tested

Permanently UV-resistant
Heat resistant
Highly diffusible

Product advantages

Fire class B

Flame resistant

Open to diffusion

Maximum safety, no mold growth

UV-resistant

Permanently UV-stable

✓

PERMANENTLY UV-STABLE

Thanks to the durable polyester fleece and the multiple acrylate coating, the Volcano UV façade membrane is ideal for partially open and open facades without a limited number of joints. Meets the requirements of EN 13859-2 after artificial ageing with 5000 hours.

✓

FIRE CLASS B

Confirmed by the materials testing institute of the University of Braunschweig.

✓

HIGHLY PERMEABLE & WATER-REPELLENT

The structure is very good at releasing moisture to the outside and is also protected against water from the outside.

✓

HEAT RESISTANT

The ALMO UV facade membrane remains stable and functional even at extreme temperatures of up to 100°C.

✓

TIME SAVING

The integrated self-adhesive seam saves time during installation and ensures quick and secure installation with overlaps. Made in Germany.

Technical Data

Application	Wind and rainproof façade membrane for all façade constructions (closed, partially open, open)
Features	Permanently UV-stable, fire class B
Carrier system	Polyester fleece
Functional layer	Acrylic special coating
Grammage	180 g/m²
Roll dimensions	50m x 1,5m
Diffusion-equivalent air layer thickness (sd value)	0,02m
Maximum tensile force longitudinal / transverse in N / 50mm	340/220
m² per roll	75
UV resistance	Permanent
Temperature resistance	-40 °C to +100 °C
Fire classification	Class B - s1 - d0

Installation instructions Volcano® UV facade membrane

Step 1: Aligning the facade membrane

The smooth side of the Volcano® UV facade membrane should face outwards and the ProLine with the lettering should face the installer. It should be attached directly to the insulation using a stapler above the adhesive seam.

Step 2: Overlapping the facade membranes

The second facade sheet should be installed over the first facade sheet, with an overlap of around 10 cm. The self-adhesive strips of the two façade membranes should then be detached and glued closely together to ensure a tight facade seal.

Step 3: Sealing with Volcano® UV adhesive tape

The facade membranes should be overlapped using the UV-stabilized and diffusion-open Volcano® UV Facade adhesive tape for an optimal, wind-tight seal.

Step 4: Installing the counter battens

After the facade sheets have been bonded, the counter battens should be mounted directly onto the supporting structure in the direction of the supporting structure.

Step 5: Fastening the timber cladding

The timber cladding is then mounted directly onto the counter battens. It is important to fasten the timber cladding evenly and securely in order to create a stable base for the facade cladding.

Carrier system:	Polyester-Vlies
Execution:	1.5m x 50m
Application:	Wind- and rainproof facade membrane for all facade constructions (closed, partially open, open)
Characteristics:	Permanently UV stable, Fire class B
Functional layer:	Acrylic special coating
Weight per unit area:	180 g/m²
Diffusion-equivalent air layer thickness (sd value):	0,12m
Maximum tensile force longitudinal / transverse in N / 50mm:	450/180
Roll length:	50m
Width:	1,5m
m² per roll:	75
UV-resistance:	Permanent
Temperature resistance:	-40 °C to +150 °C
Fire behavior:	Class B - s2 - d0

Downloads

Datenblatt Volcano UV Fassadenbahn

MPA Braunschweig Brandzertifikat

Data sheet Volcano UV facade membrane

ALMO Verlegeanleitung Fassadenbahn
